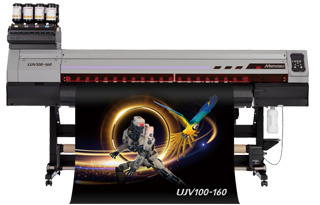

UJV100-160 Roll to Roll LED-UV InkJet Printer

Expert printing made easy.
- Well-balanced entry-level models with excellent operational performance, image quality, speed and cost -
100 Series: UV inkjet printer

Production Example of UJV100-160

1. Latest features that achieve Mimaki quality

2. High productivity at a competitive price

3. Capability of supporting various media types and value-added prints, achieved by using UV-curable ink

Specifications

Precautions for UV printing

Expert printing made easy.- Well-balanced entry-level models with excellent operational performance, image quality, speed and cost -100 Series: UV inkjet printer

Product outlines

DAS (Dot Adjustment System) NEW!

Mimaki technology that enables stable and high-quality print

High-speed printing at a maximum of 23m²/h

Because no drying time is required, it is possible to perform installation or lamination immediately after printing.

Ink set

MAPS4

NCU & NRS automatically detects missing nozzles and performs recovery

Author：admin_solar

Add Time：2023-02-13 14:48:55

Source：

Print Small Middle Big

Add Time：2023-02-13 14:48:55

Score：

High-spec model for print & cut (UCJV300 Series) →

With two newly developed heads, the UJV100-160 has pursued high quality, high productivity, and stable operation as a UV-curable inkjet printer.

In addition to NCU (Nozzle Check Unit), NRS (Nozzle Recovery System) and MAPS4 (Mimaki Advanced Pass System4), which enable stable high quality printing, the DAS (Dot Adjustment System) was incorporated into the new “100 series” printers. Dot position and feed correction, which used to take a lot of time and effort to do manually, can now be done automatically, reducing the workload on the operator.

Latest features that achieve Mimaki quality
- Dot position / Feeding amount auto correcting function "DAS"
- Mimaki technology that enables stable and high-quality print
High productivity at a competitive price
- High-speed printing at a maximum of 23m²/h *
- Because no drying time is required, it is possible to perform installation or lamination immediately after printing.
Capability of supporting various media types and value-added prints, achieved by using UV-curable ink

*23m²/h: When printed on tarpaulin using the 4C Draft mode

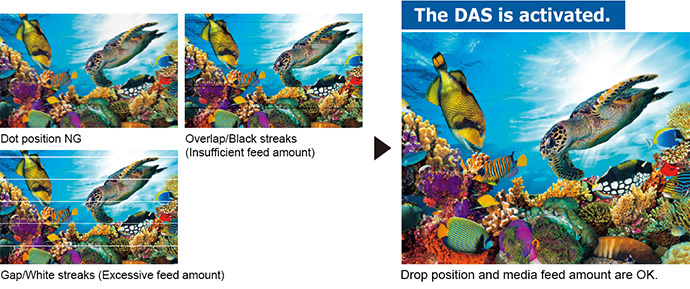

The UJV100-160 is equipped with the DAS, a function to automatically adjust the dot position and feeding amount that affect print quality.

When media or printing conditions are changed, an adjustment of ink dot position and media feed amount to suit is necessary.
As the DAS automatically performs these operations, printing can be performed without any labor or variations in adjustments by the operator.

DAS (Dot Adjustment System)

Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven color printing with blurred boundaries similar to gradation printing.

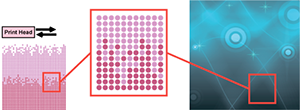

MAPS ON
Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.

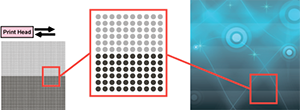

MAPS OFF
Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.

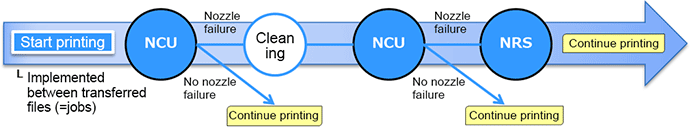

NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue the print operations without waiting for a repair by a technician.

NCU & NRS

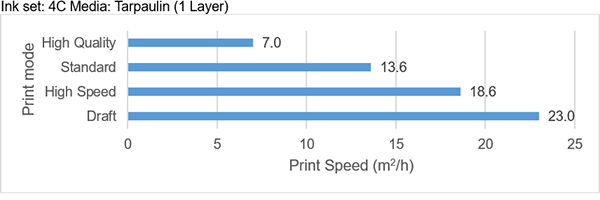

Ink set: 4C Media: Tarpaulin (1 Layer）

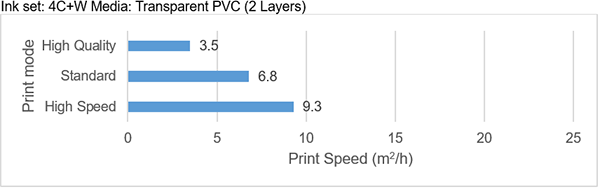

Ink set: 4C+W Media: Transparent PVC (2 Layers）

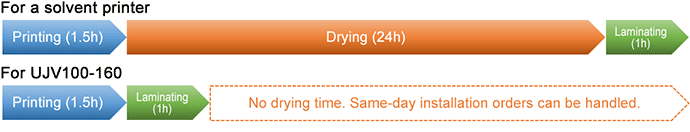

Because UV-curable ink is cured instantly by irradiating UV (ultraviolet) light immediately after printing, a drying process is not needed. Post-processing and sign applying are possible immediately after printing, which shortens production time and improves productivity, allowing you to promptly handle orders of short delivery time.

For UJV100-160: No drying time. Same-day installation orders can be handled.

Print on a wide variety of materials, including not only PVC and tarpaulin but also paper with no acceptance layer, PET film, and fabric, is enabled. Value-added print such as two-layer print, in which white ink is used for transparent PET film, and varnish print using clear ink, can also be handled.

Capability of supporting various media types and value-added prints, achieved by using UV-curable ink

UJV100-160
Print head		On-demand piezo head (2 staggered layout)
Print resolution		360 dpi, 720 dpi, 900 dpi, 1200 dpi
Ink	Type/ Color	UV-curable ink LUS-170 (C, M, Y, K, W, Cl) UV-curable ink LUS-210 (C, M, Y, K, W, Cl)
Ink	Capacity	1L bottle
Maximum print width		1,610 mm (63.4 in)
Media	Maximum width	1,620 mm (63.8 in)
	Thickness	1 mm or lower
	Roll diameter	φ250 mm or less
	Roll weight	45 kg or less
	Roll inside diameter	2 inch / 3 inch
Certifications		VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC
Interface		USB2.0 / Ethernet 1000BASE-T
Power supply		Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz
Operational environment		Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H)		2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in)
Weight		167 kg (368.2 lb)

LUS-170 ［C,M,Y,K,W,Cl］	C　M　Y　K
	C　M　Y　K　W
	C　M　Y　K　W　Cl
LUS-210 ［C,M,Y,K,W,Cl］	C　M　Y　K
	C　M　Y　K　W
	C　M　Y　K　W　Cl

Some of the screens and printing samples in this website are artificial renderings.
Specifications are subject to change without notice.
All trademarks or registered trademarks are the property of their respective owners.
Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.

Inks and substrates:

Please note that properties and adhesion, weather resistance etc. of ink and substrates can vary. Therefore please test materials before printing.
Some substrates require primer before printing. Please test materials beforehand or ask your sales representative.

Safety notice:
You are dealing with UV light sources that may harm your health. Please follow below guidelines strictly:

Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
Depending upon print mode, there might occur some VOC emittance from printed parts not yet cured and hardened.
In addition, please read the instructions and guidelines of the manual carefully and follow those.
